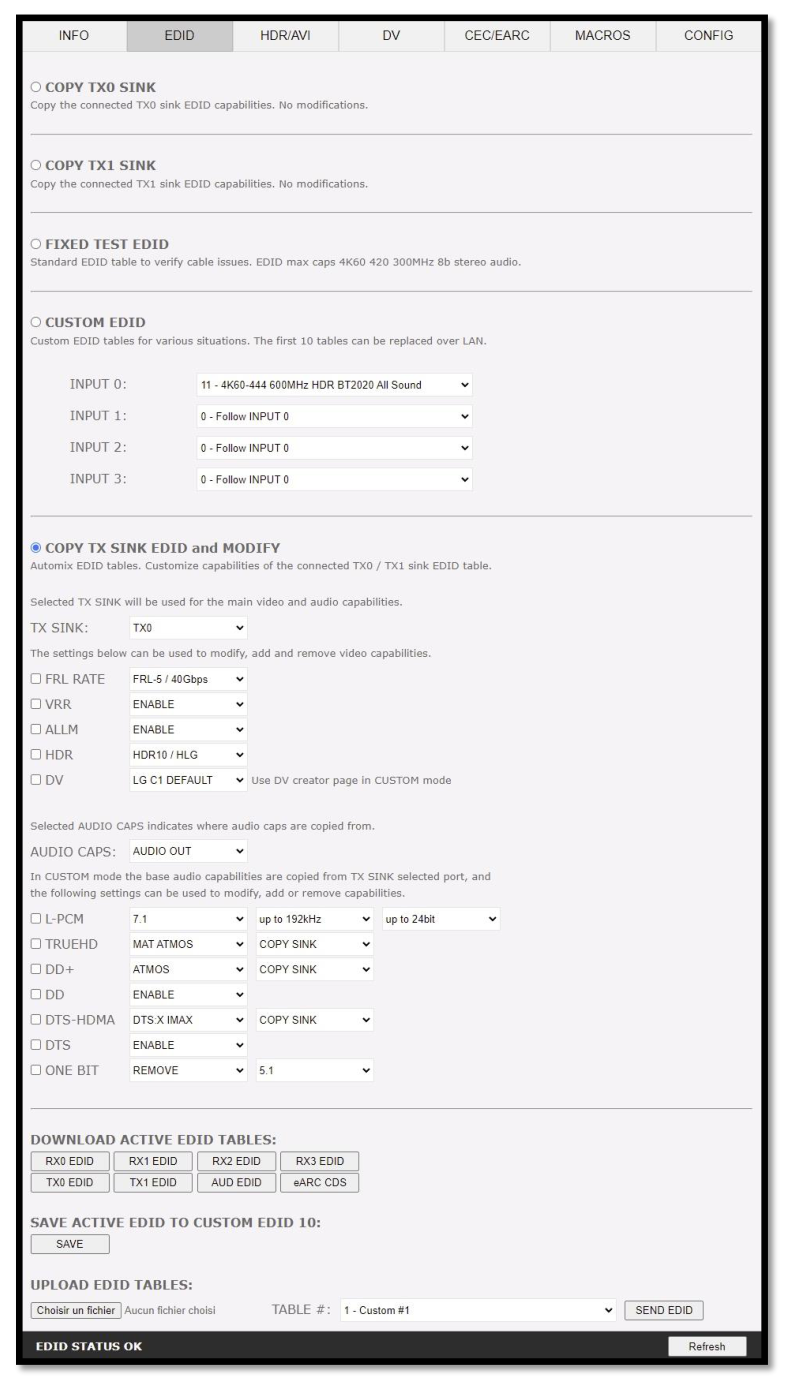

VRROOM Web Server EDID Section

VRROOM Web Server EDID Section

[COPY TX0 SINK]: Use EDID from the device connected at TX0 output.

[COPY TX1 SINK]: Use EDID from the device connected at TX1 output.

[FIXED EDID]: Use a 4K60 4:2:0 8b 300MHz 2ch Audio EDID.

[CUSTOM EDID]: Define individual EDID for each input from a list of 10 custom and 90 predefined EDID.

[COPY TX SINK EDID and MODIFY]: Customize capabilities of the connected TX0 / TX1 sink EDID table.

• [TX SINK]: Select the TX SINK that will be used for the main video capabilities.
  • [FRL RATE]: Disable or set the max FRL rate you want to apply. (FRL1, 2, 3, 4 or 5)
  • [VRR]: Enable or Disable VRR support.
  • [ALLM]: Enable or Disable ALLM support.
  • [HDR]: Remove or set the HDR mode (HDR10, HDR10/HLG, HDR10+ or HDR10+/HLG)
  • [DV]: Remove or set DV mode (LG C1 Default or Custom DV).
• [AUDIO CAPS]: Select the SINK that will be used for the main audio capabilities or set a forced mode (Stereo, 5.1, Full, TX0, TX1, Audio Out, eARC Out, Custom)
• [CUSTOM]: If CUSTOM mode is selected for AUDIO CAPS the following can be set or adjusted
  • [L-PCM]: Set the preferred L-PCM mode, sample rate and bit width.
  • [TRUE HD]: Disable or set the preferred True HD mode and the sample rate.
  • [DD+]: Disable or set the DD+ mode and the sample rate.
  • [DD]: Disable or set the DD mode.
  • [DTS-HDMA]: Disable or set the DTS-HDMA mode and the sample rate.
  • [DTS]: Disable or set the DTS mode.
  • [ONE BIT]: Disable or set the ONE BIT mode and the sample rate.
  • [HDR]: Remove or set the HDR mode (HDR10, HDR10/HLG, HDR10+ or HDR10+/HLG)
  • [DV]: Remove or set DV mode (LG C1 Default or Custom DV).

[DOWNLOAD ACTIVE EDID TABLES]: Download any EDID from inputs or outputs including eARC CDS.

[SAVE ACTIVE EDID TO CUSTOM EDID 10]: One click button to store the current EDID in Custom EDID 10

[UPLOAD EDID TABLES]: Select an EDID file and a Custom EDID Table #number and click SEND EDID to upload it.

[REFRESH]: Refresh the current page.

List of Custom EDID available.

User can select an EDID from all below EDID tables or force the creation of an Automix EDID with below options.

[FIXED TEST EDID]
This mode is a 4K60 4:2:0 8b 300MHz stereo EDID table. It can be used as a security EDID to ensure a picture in every setup/situation. (Except for FHD and 4K30 Max sink device)

[CUSTOM EDID]
Pick and use EDID from a selection of preloaded EDID tables or load any EDID bank of your choice. By default the selected EDID table is 8K60-420 FRL-5 VRR HDR with Full Audio capabilities. When you select an EDID bank from the dropdown list of 100 different EDID tables available, there is nothing else to do, once you click one, the EDID of your choice will be loaded and HPD events will reset the signal to present your selected EDID automatically. Each input can have an individual EDID assigned. Some source need to be restarted after EDID changes, it is safe to always restart your source after changing EDID.

• 1 - Custom Default [SONY A85J 7.1]
• 2 - Custom Default [Q70J HDR10+ 7.1]
• 3 - Custom Default [DENON S960H 8K]
• 4 - Custom Default [Q9FN ALLM VRR HDR10+]
• 5 - Custom Default [SONY A1 LLDV DCI-P3]
• 6 - Custom Default [LG NANO 8K 7.1]
• 7 - Custom Default [LG C9 7.1]
• 8 - Custom Default [LG C1 7.1]
• 9 - Custom Default [PanaGZ960E DV HDR10+]
• 10 - Custom Default [SONY A1 LLDV BT2020]
• 11 - 8K60-420 FRL-5 VRR HDR 7.1
• 12 - 8K60-420 FRL-5 VRR HDR 5.1
• 13 - 8K60-420 FRL-5 VRR HDR 2.0
• 14 - 8K60-420 FRL-5 HDR 7.1
• 15 - 8K60-420 FRL-5 HDR 5.1
• 16 - 8K60-420 FRL-5 HDR 2.0
• 17 - 4K120-444 FRL-5 10b VRR HDR 7.1
• 18 - 4K120-444 FRL-5 10b VRR HDR 5.1
• 19 - 4K120-444 FRL-5 10b VRR HDR 2.0
• 20 - 4K120-444 FRL-5 10b HDR 7.1
• 21 - 4K120-444 FRL-5 10b HDR 5.1
• 22 - 4K120-444 FRL-5 10b HDR 2.0
• 23 - 4K120-420 VRR HDR 7.1
• 24 - 4K120-420 VRR HDR 5.1
• 25 - 4K120-420 VRR HDR 2.0
• 26 - 4K120-420 HDR 7.1
• 27 - 4K120-420 HDR 5.1
• 28 - 4K120-420 HDR 2.0
• 29 - 4K60-444 600MHz HDR BT2020 7.1
• 30 - 4K60-444 600MHz HDR BT2020 5.1
• 31 - 4K60-444 600MHz HDR BT2020 2.0
• 32 - 4K60-444 600MHz BT2020 7.1
• 33 - 4K60-444 600MHz BT2020 5.1
• 34 - 4K60-444 600MHz BT2020 2.0
• 35 - 4K50-444 600MHz HDR BT2020 7.1
• 36 - 4K50-444 600MHz HDR BT2020 5.1
• 37 - 4K50-444 600MHz HDR BT2020 2.0
• 38 - 4K50-444 600MHz BT2020 7.1
• 39 - 4K50-444 600MHz BT2020 5.1
• 40 - 4K50-444 600MHz BT2020 2.0
• 41 - 4K60-420 12bit HDR BT2020 7.1
• 42 - 4K60-420 12bit HDR BT2020 5.1
• 43 - 4K60-420 12bit HDR BT2020 2.0
• 44 - 4K60-420 12bit BT2020 7.1
• 45 - 4K60-420 12bit BT2020 5.1
• 46 - 4K60-420 12bit BT2020 2.0
• 47 - 4K60-420 8-bit 300MHz HDR BT2020 7.1
• 48 - 4K60-420 8-bit 300MHz HDR BT2020 5.1
• 49 - 4K60-420 8-bit 300MHz HDR BT2020 2.0
• 50 - 4K60-420 8-bit 300MHz BT2020 7.1
• 51 - 4K60-420 8-bit 300MHz BT2020 5.1
• 52 - 4K60-420 8-bit 300MHz BT2020 2.0
• 53 - 4K30-444 300MHz HDR BT2020 7.1
• 54 - 4K30-444 300MHz HDR BT2020 5.1
• 55 - 4K30-444 300MHz HDR BT2020 2.0
• 56 - 4K30-444 300MHz BT2020 7.1
• 57 - 4K30-444 300MHz BT2020 5.1
• 58 - 4K30-444 300MHz BT2020 2.0
• 59 - 4K30-RGB 300MHz HDR BT2020 7.1
• 60 - 4K30-RGB 300MHz HDR BT2020 5.1
• 61 - 4K30-RGB 300MHz HDR BT2020 2.0
• 62 - 4K30-RGB 300MHz BT2020 7.1
• 63 - 4K30-RGB 300MHz BT2020 5.1
• 64 - 4K30-RGB 300MHz BT2020 2.0
• 65 - 4K24-422 12-bit HDR BT2020 7.1
• 66 - 4K24-422 12-bit HDR BT2020 5.1
• 67 - 4K24-422 12-bit HDR BT2020 2.0
• 68 - 4K24-422 12-bit BT2020 7.1
• 69 - 4K24-422 12-bit BT2020 5.1
• 70 - 4K24-422 12-bit BT2020 2.0
• 71 - 4K24-422 12-bit 7.1
• 72 - 4K24-422 12-bit 5.1
• 73 - 4K24-422 12-bit 2.0
• 74 - 1080p60-444 12-bit HDR BT2020 7.1
• 75 - 1080p60-444 12-bit HDR BT2020 5.1
• 76 - 1080p60-444 12-bit HDR BT2020 2.0
• 77 - 1080p60-444 12-bit BT2020 7.1
• 78 - 1080p60-444 12-bit BT2020 5.1
• 79 - 1080p60-444 12-bit BT2020 2.0
• 80 - 1080p60-444 12-bit 7.1
• 81 - 1080p60-444 12-bit 5.1
• 82 - 1080p60-444 12-bit 2.0
• 83 - 1080p24-444 12-bit HDR BT2020 7.1
• 84 - 1080p24-444 12-bit HDR BT2020 5.1
• 85 - 1080p24-444 12-bit HDR BT2020 2.0
• 86 - 1080p24-444 12-bit BT2020 7.1
• 87 - 1080p24-444 12-bit BT2020 5.1
• 88 - 1080p24-444 12-bit BT2020 2.0
• 89 - 1080p24-444 8-bit 7.1
• 90 - 1080p24-444 8-bit 5.1
• 91 - 1080p24-444 8-bit 2.0
• 92 - 1080i60-444 8-bit 7.1
• 93 - 1080i60-444 8-bit 5.1
• 94 - 1080i60-444 8-bit 2.0
• 95 - 720p60-444 8-bit 7.1
• 96 - 720p60-444 8-bit 5.1
• 97 - 720p60-444 8-bit 2.0
• 98 - 480p60-444 8-bit 7.1
• 99 - 480p60-444 8-bit 5.1
• 100 - 480p60-444 8-bit 2.0
